Brand Name : DELTA
Model Number : 334
Certification : ISO
Place of Origin : China
MOQ : 400 kgs
Price : 2400 -3220 USD/Ton
Payment Terms : L/C, T/T, Western Union
Supply Ability : 10 Ton per week
Delivery Time : 5 - 12 days based on the quantity
Packaging Details : wooden pallets + waterproof paper
Products : stainless steel plates
Grade : 334
Standard size : 1000*2000mm 1219*2438mm 1500*6000mm
Thickness : 1.0 - 30.0mm
Brand : TISCO BAOSTEEL POSCO LISCO
Loading Port : Shanghai Port
MOQ : 200 kgs
Packing : wooden pallets + waterproof paper
AISI334 Stainless Steel Plate ASTM A240 UNS S33400 Thickness 3.0 - 16.0mm 5*20ft
Material | 200 300 400 Series stainless steel |
Grade | 201 202 301 303 304 304L 2205 2507 309 309S 310 310S 314 316L 316Ti 317L 321 347 334 2205 2507 409 409l 410 410S 420 420J1 420J2 430 441 444 904L |
Standard | AISI ASTM JIS DIN EN BS |
Tech | Cold rolled / Hot rolled |
Thickness | Hot rolled: 3mm-16mm 16-150mm Normal: 3.0 4.0 5.0 6.0 8.0 10.0 12.0 14.0 16.0 As per customer's request: 16-150mm Cold rolled: 0.3-6mm Normal:0.3/0.4/0.5/0.6/0.7/0.8/0.9/1.0/1.2/1.5/2.0/2.5/3.0 As per customer's request: 4.0/5.0/6.0 |
Width&Length | 1000mm-6000mm, or as per customer's request Hot rolled: 1250*3000mm (4.1*10ft) 1500*3000mm (5*10ft) 1250*6000mm (4.1*19.6ft) 1500*6000mm (5*19.6ft) 1800*6000mm (5.9*19.6ft) 2000*6000mm(6.5*19.6ft) Cold rolled: 1000*2000mm (3.2*6.5ft) 1219*2438mm (4*8ft) 1500*3000mm (5*10ft) 1800 available 2000 available |
Place of Origin | Jiangsu China |
Processing Service | Bending, Welding, Recoiling, Punching, Cutting |
Tolerance | ±1% |
Surface Treatment | N0.1,2B,BA,6K, 8K, 12k, N0.4, HL, Mirrored,checkered etc |
Payment | T/T terms, 30% pre-payment, 70% balance see B/L copy LC Western Union Paypal |
Delivery Time | 5-15 days for ordinary orders (standard orders <=50 ton); specified orders needs final confirmation as per customer's request |
Stainless steel grade 334 is a titanium and aluminum based austenitic stainless steel. This alloy provides better temperature scaling resistance than chromium-nickel stainless steels such as grade 304. It also has good oxidation resistance of up to 1038°C (1900°F). Grade 334 is commonly used as a sheathing material.
The following sections will discuss in detail about stainless steel grade 334.
The chemical composition of stainless steel grade 334 is outlined in the following table.
Element | Content (%) |
---|---|
Nickel, Ni | 19-20 |
Chromium, Cr | 19-19.5 |
Manganese, Mn | 1 |
Silicon, Si | 0.75 |
Phosphorus, P | 0.02 |
Sulfur, S | 0.015 |
Titanium, Ti | 0.4 |
Aluminum, Al | 0.4 |
Copper, Cu | 0.2 |
Carbon, C | 0.03 |
Iron, Fe | Balance |
The physical properties of stainless steel grade 334 are tabulated below.
Properties | Metric | Imperial |
---|---|---|
Density | 8.03 g/cm3 | 0.290 lb/in3 |
The following table shows mechanical properties of stainless steel grade 334.
Properties | Metric | Imperial |
---|---|---|
Tensile strength | 572.4 MPa | 83020 psi |
Yield strength | 241.4 MPa | 35010 psi |
Modulus of elasticity | 200 GPa | 29000 ksi |
Elongation at break | 40% | 40% |
Hardness, Rockwell B | 82 | 82 |
The thermal properties of stainless steel grade 334 are tabulated below.
Properties | Metric | Imperial |
---|---|---|
Thermal expansion co-efficient (@20-100°C/68-212°F) | 17.04 µm/m°C | 9.467 µin/in°F |
Thermal conductivity | 12.9 W/mK | 89.5 BTU in/hr.ft².°F |
Stainless steel grade 334 can be applied in these areas:
![]() |

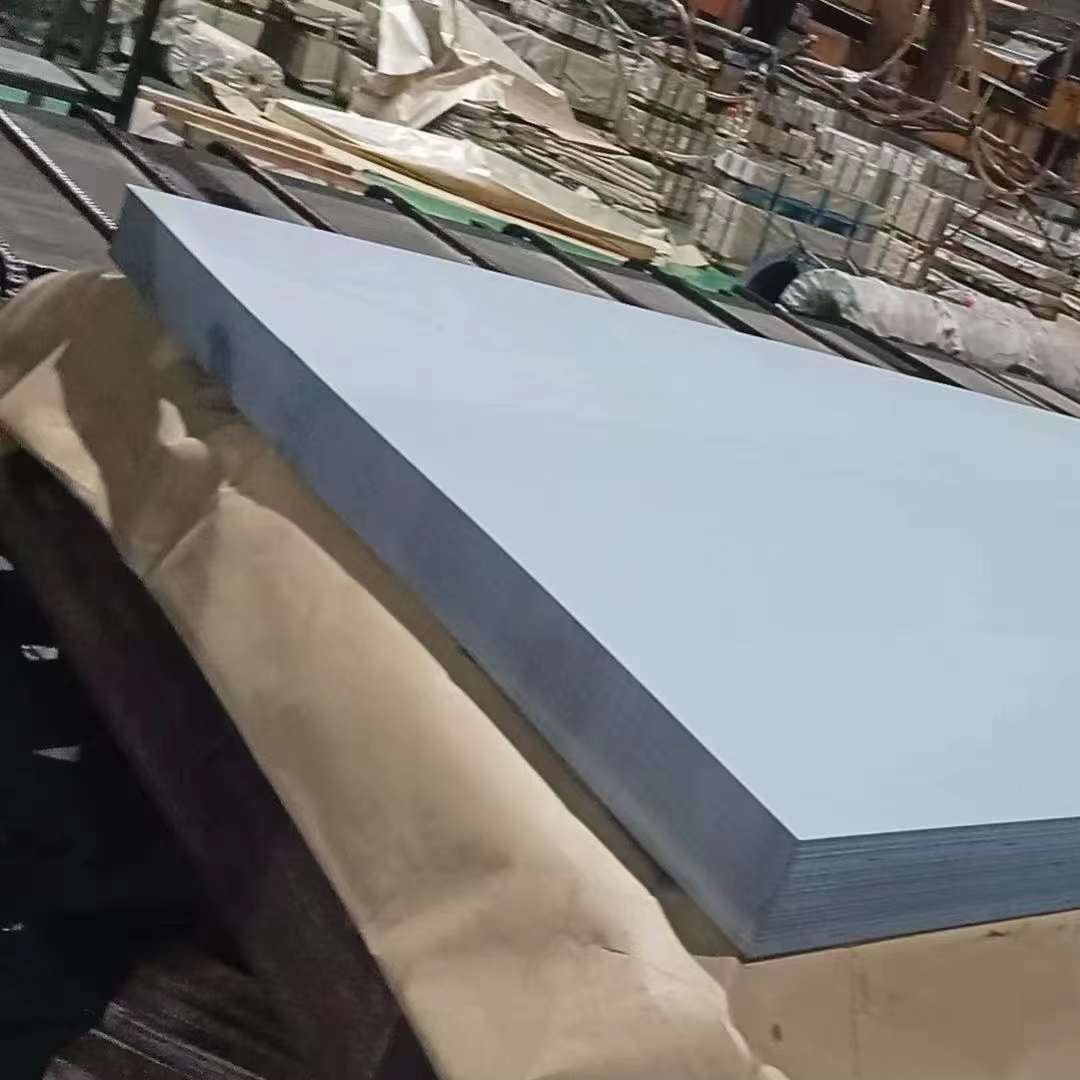

AISI334 Stainless Steel Plate ASTM A240 UNS S33400 Thickness 3.0 - 16.0mm 5*20ft Images |
