ASTM A240 304 304L 309S 316 316L 316Ti Stainless Steel Plate With EN 10204-3.1 Certificate

Brand Name : DELTA

Model Number : 304 316L 309S 310S 321 347 904L 2205 2507 254SMO

Certification : ISO

Place of Origin : China

MOQ : 400 kgs

Price : 2200 -3220 USD/Ton

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10 Ton per week

Delivery Time : 5 - 12 days based on the quantity

Packaging Details : wooden pallets + waterproof paper

Products : stainless steel plates

Grade : 304 316L 309S 310S 321 347 904L 2205 2507 254SMO

Standard size : 1000*2000mm 1219*2438mm 1500*6000mm

Thickness : 1.0 - 30.0mm

Brand : TISCO BAOSTEEL POSCO LISCO

Loading Port : Shanghai Port

MOQ : 200 kgs

Packing : wooden pallets + waterproof paper

Contact Now

ASTM A240 304 304L 309S 316 316L 316Ti Stainless Steel Plate With EN 10204-3.1 Certificate

Material
200 300 400 Series stainless steel
Grade
201 202 301 303 304 304L 2205 2507 309 309S 310 310S 314 316L 316Ti 317L 321 2205 2507 409 409l 410 410S 420 420J1 420J2 430 441 444 904L
Standard
AISI ASTM JIS DIN EN BS
Tech
Cold rolled / Hot rolled
Thickness
Hot rolled: 3mm-16mm 16-150mm
Normal: 3.0 4.0 5.0 6.0 8.0 10.0 12.0 14.0 16.0
As per customer's request: 16-150mm
Cold rolled: 0.3-6mm
Normal:0.3/0.4/0.5/0.6/0.7/0.8/0.9/1.0/1.2/1.5/2.0/2.5/3.0
As per customer's request: 4.0/5.0/6.0
Width&Length
1000mm-6000mm, or as per customer's request
Hot rolled: 1250*3000mm (4.1*10ft) 1500*3000mm (5*10ft)
1250*6000mm (4.1*19.6ft) 1500*6000mm (5*19.6ft)
1800*6000mm (5.9*19.6ft) 2000*6000mm(6.5*19.6ft)
Cold rolled: 1000*2000mm (3.2*6.5ft) 1219*2438mm (4*8ft)
1500*3000mm (5*10ft)
1800 available 2000 available
Place of Origin
Jiangsu China
Processing Service
Bending, Welding, Recoiling, Punching, Cutting
Tolerance
±1%
Surface Treatment
N0.1,2B,BA,6K, 8K, 12k, N0.4, HL, Mirrored,checkered etc
Payment
T/T terms, 30% pre-payment, 70% balance see B/L copy LC Western Union Paypal
Delivery Time
5-15 days for ordinary orders (standard orders <=50 ton); specified orders needs final confirmation as per customer's request

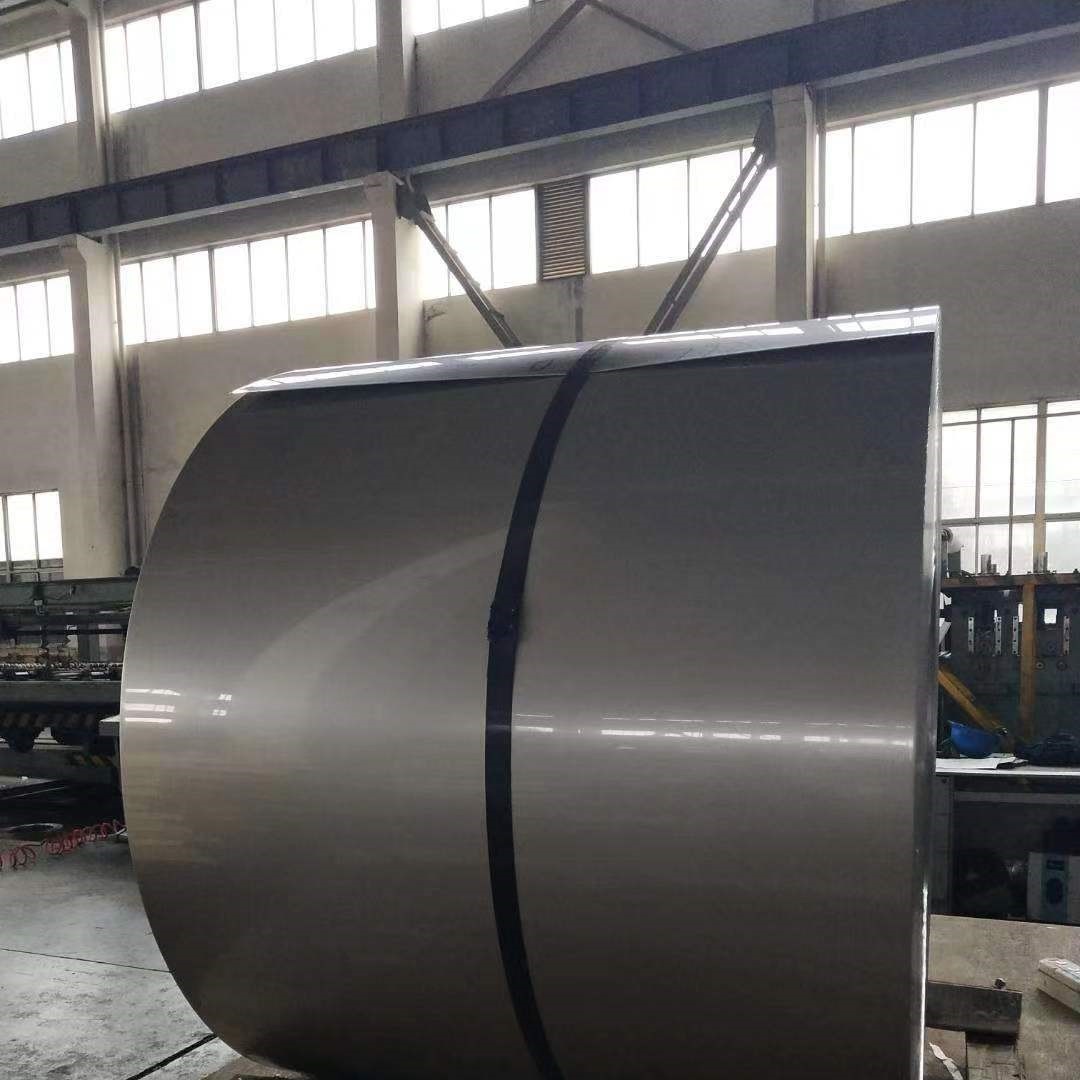

Stainless steel coil plate – ASTM A240M
The most efficient route for a stainless steel production mill to produce plate (5mm and over) is in coil form. The coil is then further downstream processed by the mill or through a service centre with equipment to flatten (often called ‘levelling’) and cut to length.

The maximum plate width produced by mills from coil is 2000mm and the maximum thickness is 13mm for hot rolled and 8mm for cold rolled.

Grade Thickness (mm) Coil width (mm) Finish
304/304L 0.4-40.0 1000 1219 1500 NO.1
316/316L 0.4-40.0 1000 1219 1500 No. 1
309S 0.6-30.0 1000 1219 1500 No. 1
310S 0.5-40.0 1000 1219 1500 No.1
321 0.8-80.0 1000 1219 1500 No.1
347 3.0-30.0 1000 1219 1500 No. 1

Stainless steel quarto plate products – ASTM A240M
Another method of producing stainless steel plate within and beyond the thickness range of coil production is from a slab of steel that is rolled in the flat condition to a specified length, width and thickness. The product of this process is commonly referred to as quarto plate and is available from mills in thickness from 5mm and above and widths to 4000mm in some thicknesses.

The standard grades and thickness for quarto plate are as follows:

Grades 304/304L, 316/316L, 3CR12.
Thickness (mm) 5.0, 6.0, 8.0, 10.0, 12.0, 16.0 & 20.0.
Width (mm) 1500 & 2000.
Length (mm) 6000.
Finish No. 1 (HRAP).

Quarto plate is commonly stocked as a dual certified grade, i.e. 304/304L and 316/316L.

Stainless steel chequer (floor) plate

Grades 304.
Thickness (mm) 3.18 & 4.76 .
Width (mm) 1219 & 1250.
Length (mm) 2438.

ASTM A240 304 304L 309S 316 316L 316Ti Stainless Steel Plate With EN 10204-3.1 CertificateASTM A240 304 304L 309S 316 316L 316Ti Stainless Steel Plate With EN 10204-3.1 CertificateASTM A240 304 304L 309S 316 316L 316Ti Stainless Steel Plate With EN 10204-3.1 CertificateASTM A240 304 304L 309S 316 316L 316Ti Stainless Steel Plate With EN 10204-3.1 Certificate
