Laser Cutting Stainless Steel Plate ASTM EN DIN Thickness 0.4 - 30.0mm Grade 201 304 304L 309S 310S 316L 321 347
| Products | Stainless Steel Plate |
| Thickness | 0.4 - 30.0mm |
| Width | 1000mm 1219mm 1500mm 1800mm 2000mm or other width as request |
| Length | 2000mm 2438mm 3000mm 6000mm or other length as request |
| Grade | 201 202 301 304 304L 304H 309S 310S 316L 316Ti 317L 321 347 409L 410 420 430 431 436L 439 441 443 444 2205 2507 904L 600 625 800 825 718 253MA 254SMO.etc |
| Service | Laser Cutting, Surface processing, bending |
| Brand | TISCO BAOSTEEL POSCO LISCO JISCO |
| Standard | ASTM JIS GB DIN EN BS |
| Certificate | ISO MTC C/O F/E |
| Packing | Wooden pallets and waterproof paper |
| Deliver time | 5 - 15 days |
| Loading port | Shanghai Port |

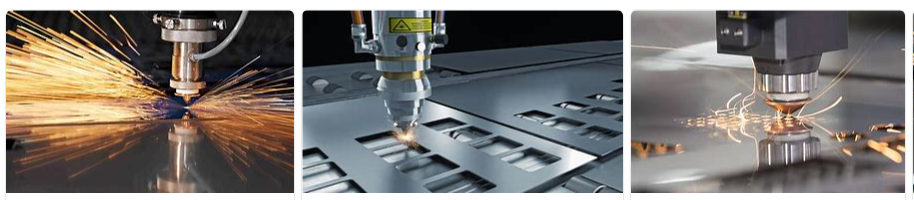

About Laser Cutting Service for Stainless Steel Plate
- Cutting Thickness: 0.4 - 30mm
- Cutting Width: within 2000mm
- Cutting Length: within 10000mm
- Cutting tolerance: within 0.5mm

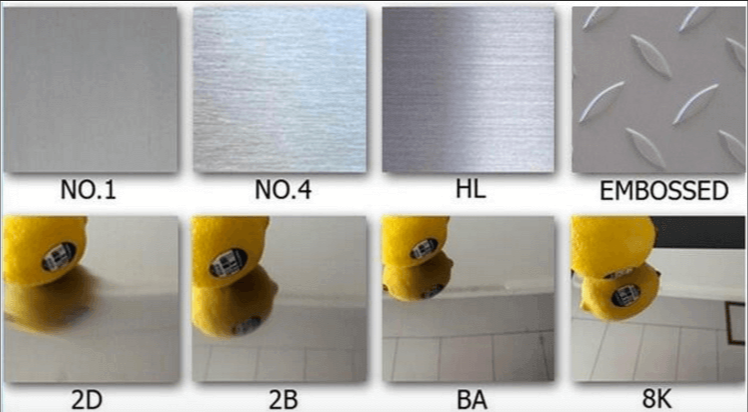

About Our Surface Processing Service for Stainless Steel Sheet
NO.1 Surface:
A No. 1 Finish is produced via hot rolling, then annealing and pickling the material in acid. This results in a dull finish and is typically used when a smooth decorative finish isn’t important, for example, in elevated temperature applications.
NO. 2D FINISH
A No. 2D Finish is produced via cold rolling, then annealing and pickling the material in acid. The finish is smooth, non-reflective, and dull. It is ideal for deep drawing applications and is found in auto exhaust components, hardware, and chemical equipment.
NO. 2B FINISH
A No. 2B Finish is cold rolled, annealed, and pickled, followed by a light temper pass using polished rolls. The finish is smooth, somewhat reflective, and bright. It’s a general-purpose cold-rolled finish used in cookware, small tanks, and pharmaceutical equipment.
BRIGHT ANNEALED (BA) FINISH
A Bright Annealed Finish is cold rolled, then annealed in a controlled, protective atmosphere to prevent scale formation during annealing. This finish is not pickled in acid because a thin oxide film is formed during annealing, eliminating the need for pickling. It is used in trim appliances, surgical instruments, and cookware.
NO. 3 & NO. 4 FINISHES
No. 3 and No. 4 finishes are produced by mechanically polishing a No. 2B finish substrate. These finishes have uniform appearances that are produced by an emery cloth belt used for polishing. Each finish has a corresponding grit necessary to create its surface texture.
These finishes are among the most used in stainless steel. Applications featuring No. 3 finishes include architectural and food processing components. Applications featuring No. 4 finishes include architectural wall panels, elevators, sinks, and restaurant equipment.
NO. 6 FINISH
A No. 6 finish is created by Tampico brushing a No. 4 finish. It’s dull, silver-white, and less reflective than a No. 4 finish. This finish was once commonly found on stainless steel architectural components up to the 1980s but is much less used today.
NO. 7 FINISH
A No. 7 finish is produced by buffing a finely ground surface. The finish is high luster with grit lines still visible on the material. The result is highly reflective, almost mirror-like. Some common applications for No. 7 finishes include column covers, ornament trim, and wall panels.
NO. 8 FINISH
This is produced by polishing with successively higher grit abrasives and then buffing for a mirror finish. By ATSM standards, they are the most reflective of all finishes.
Application of Stainless Steel Sheet&Plate
Stainless steel sheet & plate used in variety area in our life. Here some application of the stainless steel sheets:
- Food and beverage processing
- Heat exchangers
- Chemical and pharmaceutical manufacturing
- Industrial machinery and conveyors
- Architectural equipment
- Marine and outdoor applications
